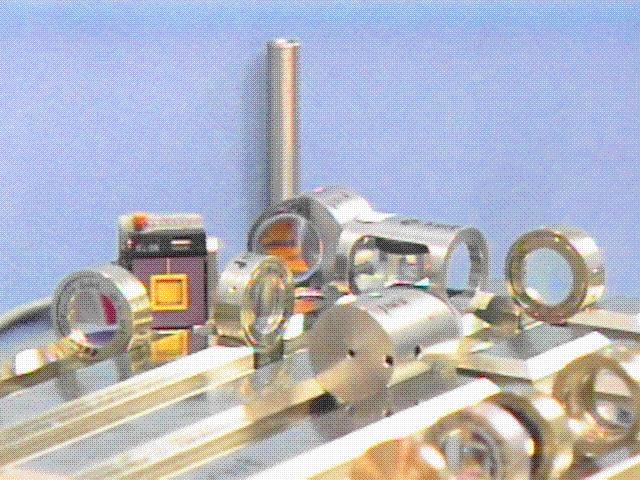

Images related to my work with the slotted base-plate.

Copyright notice: You may not copy or modify the designs here displayed without giving the author or authors the proper credit.

Some of the designs I have developed for the slotted base plate:

Please, notice that these designs are being constantly modified and these may not be their latest versions.

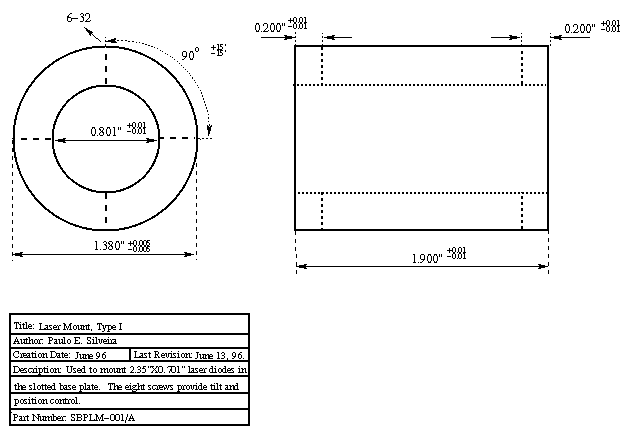

[laser_mount1.gif] Laser diode mount. 8 radial screws are used for alignment.

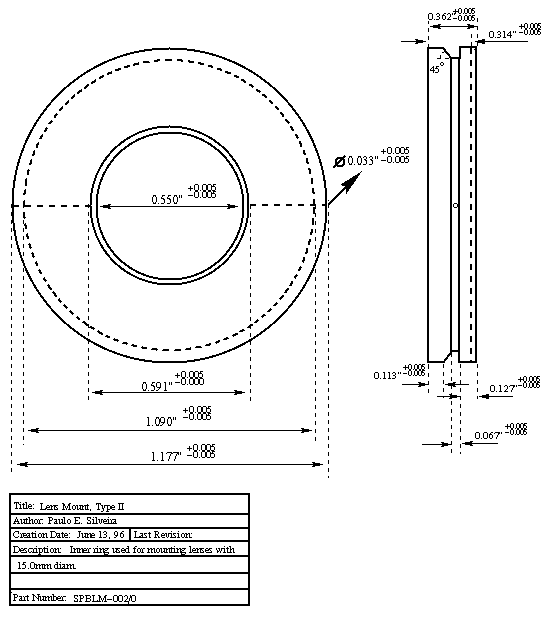

 [lens_mount2.gif] An adaptor ring for 15mm lens. Modified from Optivisions' original design.

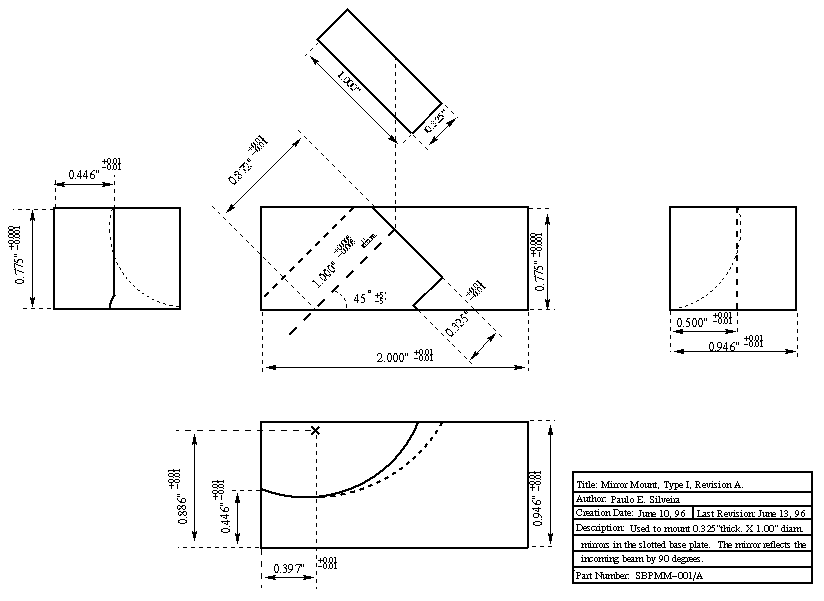

  [mirror_mount1.gif] 45 degrees monolithic mirror mount.

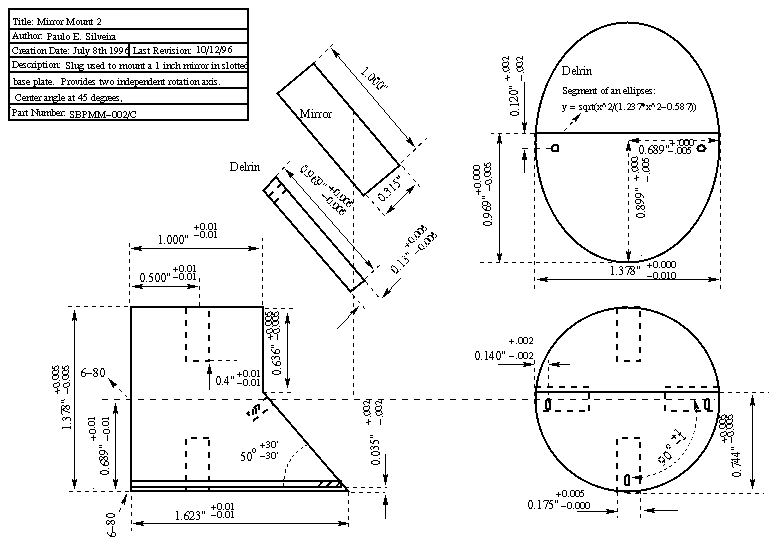

  [mirror_mount2c.gif] 45 degrees fully adjustable mirror mount.

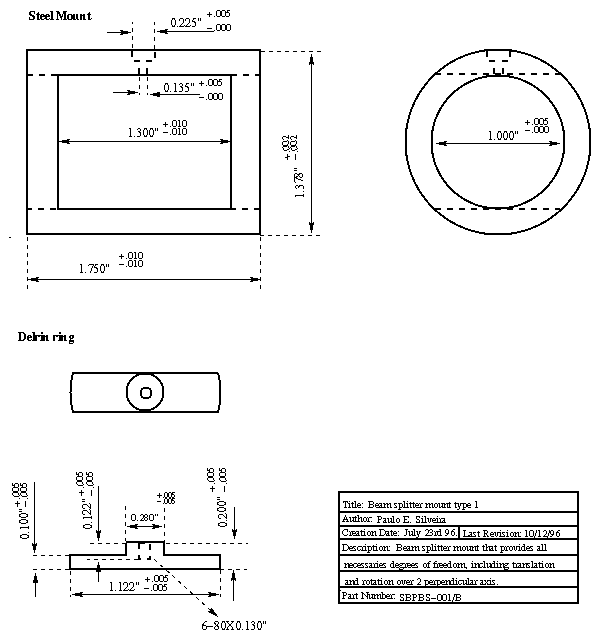

 [bs_mount1.gif] Vibration resistant fully adjustable beam-splitter mount.

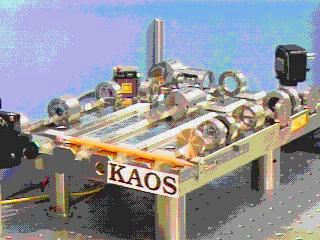

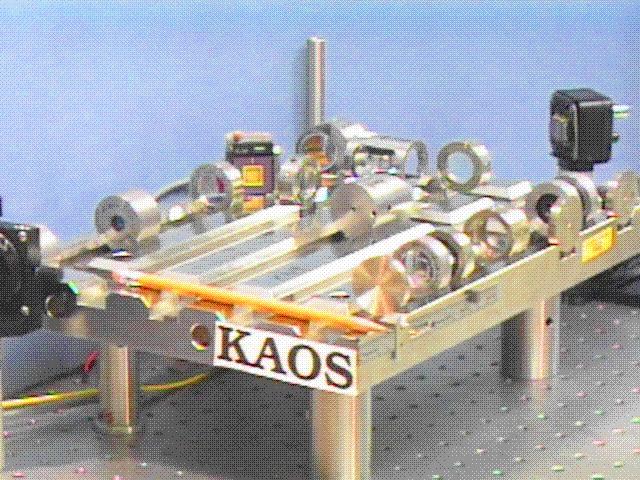

  [sbp4.jpg] Picture of tilted-plane imaging in the slotted base-plate.

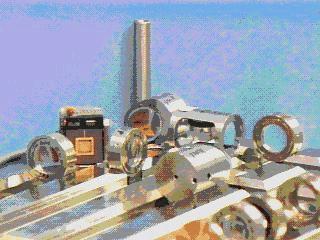

  [sbp3.jpg] A close-up, showing the mirror and beam-splitter mounts.
